Set up code scanning

Code scanning in GitHub Advanced Security for Azure DevOps lets you analyze the code in an Azure DevOps repository to find security vulnerabilities and coding errors. You'll need either GitHub Advanced Security for Azure DevOps or, if you're using the standalone experience, GitHub Code Security for Azure DevOps enabled. Any problems identified by the analysis are raised as an alert. Code scanning uses CodeQL to identify vulnerabilities.

CodeQL is the code analysis engine developed by GitHub to automate security checks. You can analyze your code using CodeQL and display the results as code scanning alerts. For more specific documentation about CodeQL, see CodeQL documentation.

GitHub Advanced Security for Azure DevOps works with Azure Repos. To use GitHub Advanced Security with GitHub repositories, see GitHub Advanced Security.

Prerequisites

For more information about Advanced Security permissions, see Manage Advanced Security permissions.

Advanced setup for code scanning

CodeQL is a pipeline-based tool, where results are aggregated per repository.

trigger:
  - main

pool:
  # Additional hosted image options are available: https://dotnet.territoriali.olinfo.it/en-us/azure/devops/pipelines/agents/hosted#software
  vmImage: ubuntu-latest

steps:

  - task: AdvancedSecurity-Codeql-Init@1
    inputs:
      languages: "java"
      # Supported languages: csharp, cpp, go, java, javascript, python, ruby, swift
      # You can customize the initialize task: https://dotnet.territoriali.olinfo.it/en-us/azure/devops/pipelines/tasks/reference/advanced-security-codeql-init-v1?view=azure-pipelines
      # If you're using a self-hosted agent to run CodeQL, use `enableAutomaticCodeQLInstall` to automatically use the latest CodeQL bits on your agent:
      enableAutomaticCodeQLInstall: true

#   Add your custom build steps here
# - Ensure that all code to be scanned is compiled (often using a `clean` command to ensure you're building from a clean state).
# - Disable the use of any build caching mechanisms as this can interfere with CodeQL's ability to capture all the necessary data during the build.
# - Disable the use of any distributed/multithreaded/incremental builds as CodeQL needs to monitor executions of the compiler to construct an accurate representation of the application.
# - For dependency scanning, ensure you have a package restore step for more accurate results.

# If you had a Maven app:
#   - task: Maven@4
#     inputs:
#       mavenPomFile: 'pom.xml'
#       goals: 'clean package'
#       publishJUnitResults: true
#       testResultsFiles: '**/TEST-*.xml'
#       javaHomeOption: 'JDKVersion'
#       jdkVersionOption: '1.17'
#       mavenVersionOption: 'Default'

# Or a general script:
#   - script: |
#       echo "Run, Build Application using script"
#       ./location_of_script_within_repo/buildscript.sh

  - task: AdvancedSecurity-Dependency-Scanning@1 # More details on this task: https://dotnet.territoriali.olinfo.it/en-us/azure/devops/pipelines/tasks/reference/advanced-security-dependency-scanning-v1?view=azure-pipelines

  - task: AdvancedSecurity-Codeql-Analyze@1 # More details on this task: https://dotnet.territoriali.olinfo.it/en-us/azure/devops/pipelines/tasks/reference/advanced-security-codeql-analyze-v1?view=azure-pipelines

Also, specify which language you're analyzing in the Initialize CodeQL task. If the language specified is swift, custom build steps are required.

If you're running on a self-hosted agent, select the Enable automatic CodeQL detection and installation to automatically use the latest CodeQL bits on your agent if you didn't manually install the latest CodeQL bundle to your agent tool cache.

To generate alerts, run your first scan with a pipeline with the code scanning tasks included.

More configurations for code scanning

Language and query support

GitHub experts, security researchers, and community contributors write and maintain the default CodeQL queries used for code scanning. The queries are regularly updated to improve analysis and reduce any false positive results. The queries are open source, so you can view and contribute to the queries in the github/codeql repository.

CodeQL supports and uses the following language identifiers:

For more information, see Supported languages and frameworks.

You can view the specific queries and task details executed by CodeQL in the build log.

Code scanning build mode customization

Code scanning supports two build modes when setting up a pipeline for scanning:

• none - the CodeQL database is created directly from the codebase without building the codebase (supported for all interpreted languages, and additionally supported for cpp, java, and csharp).
• manual - you define the build steps to use for the codebase in the workflow (supported for all compiled languages).

For more information on the different build modes including a comparison on the benefits of each build mode, see CodeQL code scanning for compiled languages.

The following code shows an example of a valid configuration with multiple languages and none build mode:

trigger: none

pool:
  vmImage: windows-latest

steps:
- task: AdvancedSecurity-Codeql-Init@1
  displayName: Initialize CodeQL
  inputs:
# build mode `none` is supported for C# and Java, and JavaScript is an interpreted language
# and build mode `none` has no impact on JavaScript analysis
    languages: 'csharp, java, javascript'
    buildtype: 'none'

- task: AdvancedSecurity-Codeql-Analyze@1
  displayName: Perform CodeQL Analysis

The following code shows an example of an invalid configuration with multiple languages and none build mode:

trigger: none

pool:
  vmImage: windows-latest

steps:
- task: AdvancedSecurity-Codeql-Init@1
  displayName: Initialize CodeQL
  inputs:
# build mode `none` is supported for C# but build mode `none` is NOT supported for Swift
# so this pipeline definition will result in a failed run
    languages: 'csharp, swift'
    buildtype: 'none'

- task: AdvancedSecurity-Codeql-Analyze@1
  displayName: Perform CodeQL Analysis

Code scanning alerts

GitHub Advanced Security for Azure DevOps code scanning alerts include code scanning flags by repository that alert of code-level application vulnerabilities.

To use code scanning, you need to first configure GitHub Advanced Security for Azure DevOps.

The Advanced Security tab under Repos in Azure DevOps is the hub to view your code scanning alerts. Select the Code scanning tab to view scanning alerts. You can filter by branch, state, pipeline, rule type, and severity. At this time, the alerts hub doesn't display alerts for scanning completed on PR branches.

There's no effect to results if pipelines or branches are renamed - it may take up to 24 hours before the new name is displayed.

If you choose to run custom CodeQL queries, there isn't by default a separate filter for alerts generated from different query packs. You can filter by rule, which is distinct for each query.

If you turn off Advanced Security for your repository, you lose access to the results in the Advanced Security tab and build task. The build task doesn't fail, but any results from builds run with the task while Advanced Security is disabled are hidden and not retained.

Alert details

Select an alert for more details, including remediation guidance. Each alert includes a location, description, example, and severity.

Viewing alerts for a repository

Anyone with contributor permissions for a repository can view a summary of all alerts for a repository in the Advanced Security tab under Repos. Select the Code scanning tab to view all secret scanning alerts.

To display results, code scanning tasks need to run first. Once the first scan finishes, any detected vulnerabilities are displayed in the Advanced Security tab.

By default, the alerts page shows code scanning results for the default branch of the repository.

The status of a given alert reflects the state for the default branch and latest run pipeline, even if the alert exists on other branches and pipelines.

Dismissing code scanning alerts

To dismiss alerts, you need appropriate permissions. By default, only project administrators can dismiss Advanced Security alerts.

To dismiss an alert:

1. Navigate to the alert you wish to close and select on the alert.
2. Select the Close alert drop-down.
3. If not already selected, select either Risk accepted or False positive as the closure reason.
4. Add an optional comment into the Comment text box.
5. Select Close to submit and close the alert.
6. The alert state changes from Open to Closed and your dismissal reason displays.

This action dismisses the alert across all branches. Other branches that contain the same vulnerability will also be dismissed. Any alert previously dismissed can be manually reopened.

Managing code scanning alerts on pull requests

If alerts are created for new code changes in a pull request, the alert is reported as an annotation in the Overview tab's comment section of the pull request and as an alert in the Advanced Security repository tab. There is a new branch picker entry for the pull request branch.

You can review the affected lines of code, see a summary of the finding, and resolve the annotation in the Overview section.

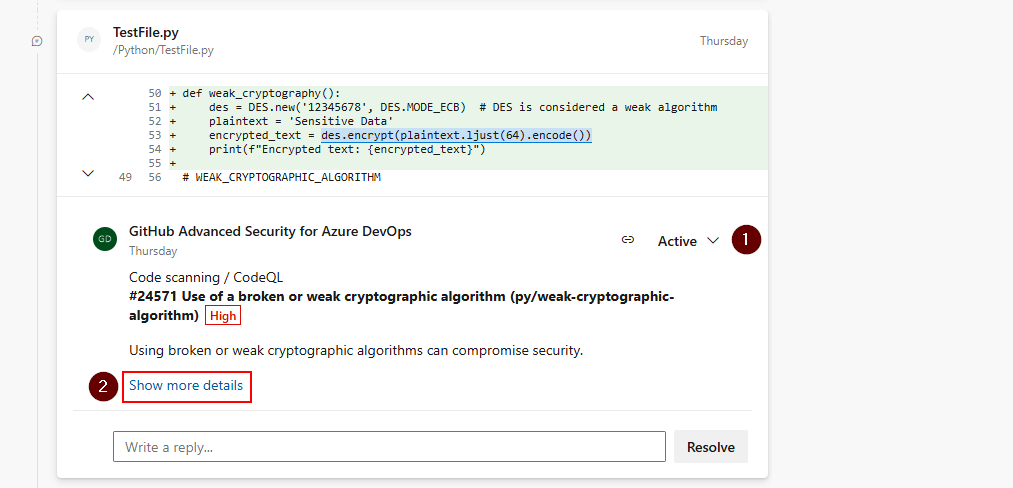

To dismiss pull request alerts, you must navigate to the alert detail view to close both the alert and resolve the annotation. Otherwise, simply changing the comment status (1) resolves the annotation but doesn't close or fix the underlying alert.

To see the entire set of results for your pull request branch, navigate to Repos > Advanced Security and select your pull request branch. Selecting Show more details (2) on the annotation directs you to the alert detail view in the Advanced Security tab.
