Public endpoint connectivity for Virtual Machines using Azure Standard Load Balancer in SAP high-availability scenarios

Create another external Azure Standard Load Balancer for outbound connections to internet.

To achieve outbound connectivity to public end points, without allowing inbound connectivity to the VM from a public end point, is to create a second load balancer with a public IP address. Then you add the VMs to the backend pool of the second load balancer where only outbound rules are defined. Use Network Security Groups to control the public end points that are accessible for outbound calls from the VM. For more information, see Scenario 2 in Outbound connections.

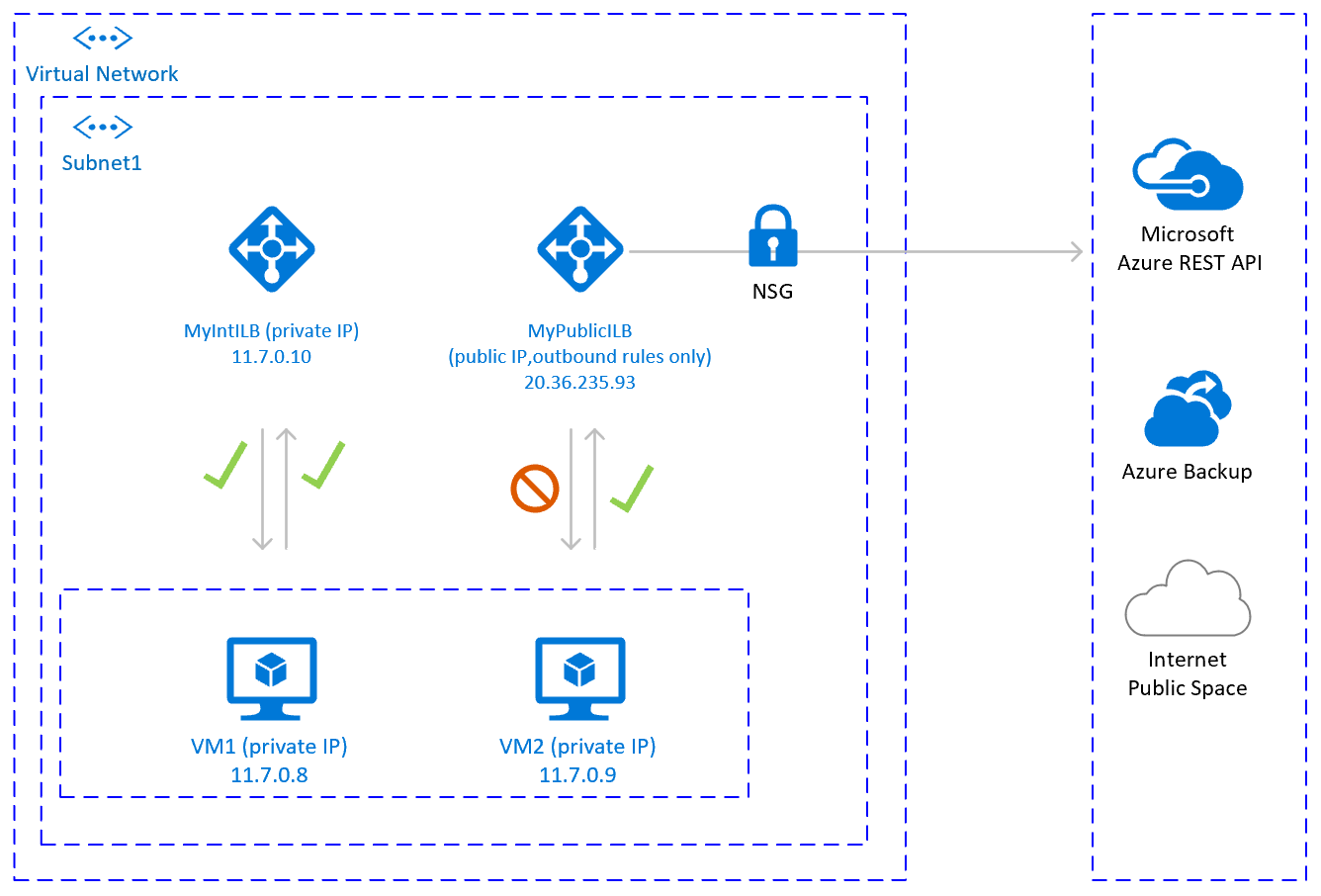

The configuration would look like:

Important considerations

• You can use one extra Public Load Balancer for multiple VMs in the same subnet to achieve outbound connectivity to public end point and optimize cost.
• Use Network Security Groups to control which public end points are accessible from the VMs. You can assign the Network Security Group either to the subnet, or to each VM. Where possible, use Service tags to reduce the complexity of the security rules.
• Azure standard Load balancer with public IP address and outbound rules allows direct access to public end point. If you have corporate security requirements to have all outbound traffic pass via centralized corporate solution for auditing and logging, you may not be able to fulfill the requirement with this scenario.

Deployment steps

Create the Load Balancer.

1. In the Azure portal, select All resources, Add, then search for Load Balancer.

2. Select Create.

3. Load Balancer Name: MyPublicILB.

4. Select Public as a type, Standard as SKU.

5. Select Create Public IP address and specify as a name MyPublicILBFrondEndIP.

6. Select Zone Redundant as Availability zone.

7. Select Review and Create, then select Create.

8. Create the Backend pool MyBackendPoolOfPublicILB and add the VMs.

   1. Select the Virtual network.
   2. Select the VMs and their IP addresses and add them to the backend pool.

9. Create outbound rules.

   az network lb outbound-rule create --address-pool MyBackendPoolOfPublicILB --frontend-ip-configs MyPublicILBFrondEndIP --idle-timeout 30 --lb-name MyPublicILB --name MyOutBoundRules  --outbound-ports 10000 --enable-tcp-reset true --protocol All --resource-group MyResourceGroup


10. Create Network Security group rules to restrict access to specific Public End Points. If there's existing Network Security Group, you can adjust it. The following steps show how to enable access to the Azure management API:

    1. Navigate to the NSG.
    2. Select Outbound Security Rules.
    3. Add a rule to Deny all outbound Access to Internet.
    4. Add a rule to Allow access to AzureCloud, with priority lower than the priority of the rule to deny all internet access.

    The outbound security rules would look like:



    For more information on Azure NSG, see Security Groups.

Another option to achieve outbound connectivity to public end points, without allowing inbound connectivity to the VM from public end points, is with Azure Firewall. Azure Firewall is a managed service, with built-in High Availability and it can span multiple Availability Zones.

You also need to deploy a User Defined Route associated with subnet where VMs and the Azure load balancer are deployed, pointing to the Azure firewall to route traffic through the Azure Firewall. For details on how to deploy Azure Firewall, see Deploy And Configure Azure Firewall.

The architecture would look like:

Important considerations

• Azure firewall is cloud native service, with built-in High Availability and it supports zonal deployment.
• Requires an extra subnet that must be named AzureFirewallSubnet.
• Outbound transfer of large data sets from the virtual network hosting SAP VMs to another virtual network or public endpoint may result in higher costs and may not be cost-effective. One such example is copying large backups across virtual networks. For details see Azure Firewall pricing.
• When the corporate firewall isn't an Azure Firewall and outbound traffic is required to pass through a centralized corporate security solution, this option might not be practical.

Deployment steps

The deployment steps assume that you already have your virtual network and subnet defined for your VMs.

1. Create the subnet AzureFirewallSubnet in the same virtual network, where the VMs and the Standard Load Balancer are deployed.
2. In Azure portal, navigate or search for Virtual Network, then select All Resources.
3. Search for the virtual network, select Virtual Network, then select Subnets.
4. Select Add Subnet. Enter AzureFirewallSubnet for the name. Enter an appropriate IP address range.
5. Save your information.

Create an Azure Firewall.

1. In Azure portal, select All resources. Then select Add, Firewall, Create. Select Resource group (select the same resource group where the Virtual Network is).
2. Enter name for the Azure Firewall resource. For instance, MyAzureFirewall.
3. Select Region, select at least two Availability zones aligned with the Availability zones where your VMs are deployed.
4. Select your virtual network, where the SAP VMs and Azure Standard Load balancer are deployed.
5. Public IP Address: Select Create and enter a name. For instance, MyFirewallPublicIP.

Create Azure Firewall Rule to allow outbound connectivity to specified public end points. The example shows how to allow access to the Azure Management API public endpoint.

1. Select Rules, Network Rule Collection, then select Add network rule collection.
2. Name: MyOutboundRule, enter Priority, then select action: Allow.
3. Service Name: ToAzureAPI.
   1. Protocol: Select Any.
   2. Source Address: Enter the range for your subnet where the VMs and Standard Load Balancer are deployed. For instance, 11.97.0.0/24.
   3. Destination ports: Enter *.
4. Save your information.
5. As you're still positioned on the Azure Firewall, select Overview. Write down the Private IP Address of the Azure Firewall.

Create an Azure Firewall route.

1. In Azure portal, select All resources, select Add, Route Table, Create.

2. For *Name, enter MyRouteTable, select Subscription, Resource group, and Location (matching the location of your virtual network and Firewall).

3. Save your information.

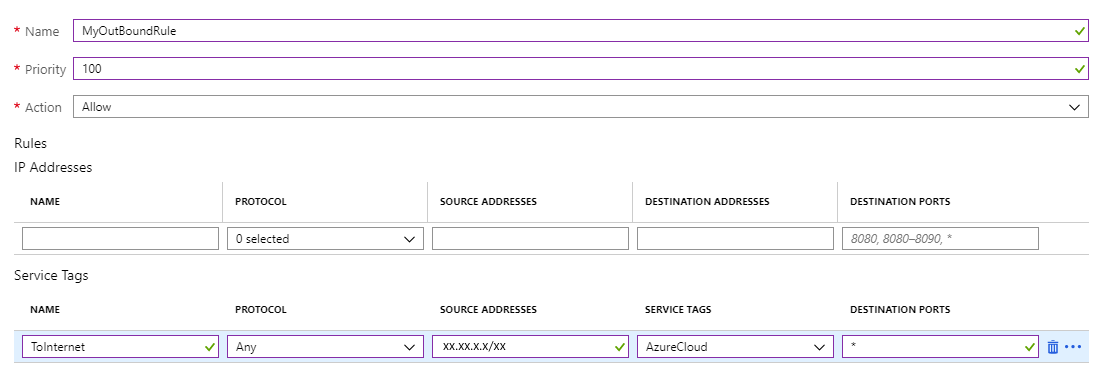

   The firewall rule would look like:



Create User Defined Route from the subnet of your VMs to the private IP of MyAzureFirewall.

1. As you're positioned on the Route Table, select Routes, then select Add.
2. Route name: ToMyAzureFirewall
3. Address prefix: 0.0.0.0/0.
4. Next hop type: Select Virtual Appliance.
5. Next hop address: Enter the private IP address of the firewall you configured: 11.97.1.4.
6. Save your information.

You could use proxy to allow Pacemaker calls to the Azure management API public end point.

Important considerations

• If there's already corporate proxy in place, you could route outbound calls to public end points through it. Outbound calls to public end points go through the corporate control point.
• Make sure the proxy configuration allows outbound connectivity to Azure management API: https://management.azure.com and https://login.microsoftonline.com.
• Make sure there's a route from the VMs to the Proxy.
• Proxy handles only HTTP/HTTPS calls. If there's a need to make outbound calls to public end point over different protocols (like RFC), an alternative solution is needed.
• The Proxy solution must be highly available, to avoid instability in the Pacemaker cluster.
• Depending on the location of the proxy, it may introduce extra latency in the calls from the Azure Fence Agent to the Azure Management API. If your corporate proxy is still on the premises, while your Pacemaker cluster is in Azure, measure latency and consider, if this solution is suitable for you.
• If there isn’t already highly available corporate proxy in place, we don't recommend this option as the customer would be incurring extra cost and complexity. If you decide to deploy extra proxy solution, to allow outbound connectivity from Pacemaker to Azure Management public API, you need to make sure the proxy is highly available. The latency from the VMs to the proxy is low.

Pacemaker configuration with Proxy

There are many different Proxy options available in the industry. Step-by-step instructions for the proxy deployment are outside of the scope of this document. In the following example, we assume that your proxy is responding to MyProxyService and listening to port MyProxyPort.

To allow pacemaker to communicate with the Azure management API, perform the following steps on all cluster nodes:

1. Edit the pacemaker configuration file /etc/sysconfig/pacemaker and add the following lines (all cluster nodes):

   sudo vi /etc/sysconfig/pacemaker
   # Add the following lines
   http_proxy=http://MyProxyService:MyProxyPort
   https_proxy=http://MyProxyService:MyProxyPort


2. Restart the pacemaker service on all cluster nodes.

   SUSE:

   # Place the cluster in maintenance mode
   sudo crm configure property maintenance-mode=true

   #Restart on all nodes
   sudo systemctl restart pacemaker

   # Take the cluster out of maintenance mode
   sudo crm configure property maintenance-mode=false


   Red Hat:

   # Place the cluster in maintenance mode
   sudo pcs property set maintenance-mode=true

   #Restart on all nodes
   sudo systemctl restart pacemaker

   # Take the cluster out of maintenance mode
   sudo pcs property set maintenance-mode=false
